RSA Securid SMS HTTP Gateway

RSA Authentication Manager can be configured to utilize TXTImpact SMS Gateway for delivery of on-demand
token codes to be used in on-demand authentications.

When a user authenticates to an agent using his/her username and on-demand PIN, the RSA
Authentication Manager sends the on-demand tokencode and mobile number to Wire2Air SMS Gateway
using the HTTP or HTTPS protocol.

TXTImpact SMS Gateway then delivers the on-demand tokencode to
the user’s mobile device via Short Message Service (SMS).

The authentication process is completed
when the user enters the on-demand token code into the agent’s prompt for next token code.

SMS HTTP Plug-In Configuration

RSA Authentication Manager can be configured to integrate a supported Short Message Service (SMS)
provider using HTTP, HTTPS, or XML-over-HTTP to deliver on-demand tokencodes to a user’s mobile
phone.

Important:

HTTP connections are not secure.

Sensitive information, such as a token codes, may be exposed.

For secure connections, configure
HTTPS.

Before configuring the HTTP Plug-In, you must locate the configuration parameters and base URL.

Contact your SMS provider for this information.

You must include the following elements within your
provider’s parameters to retrieve data from the corresponding fields.

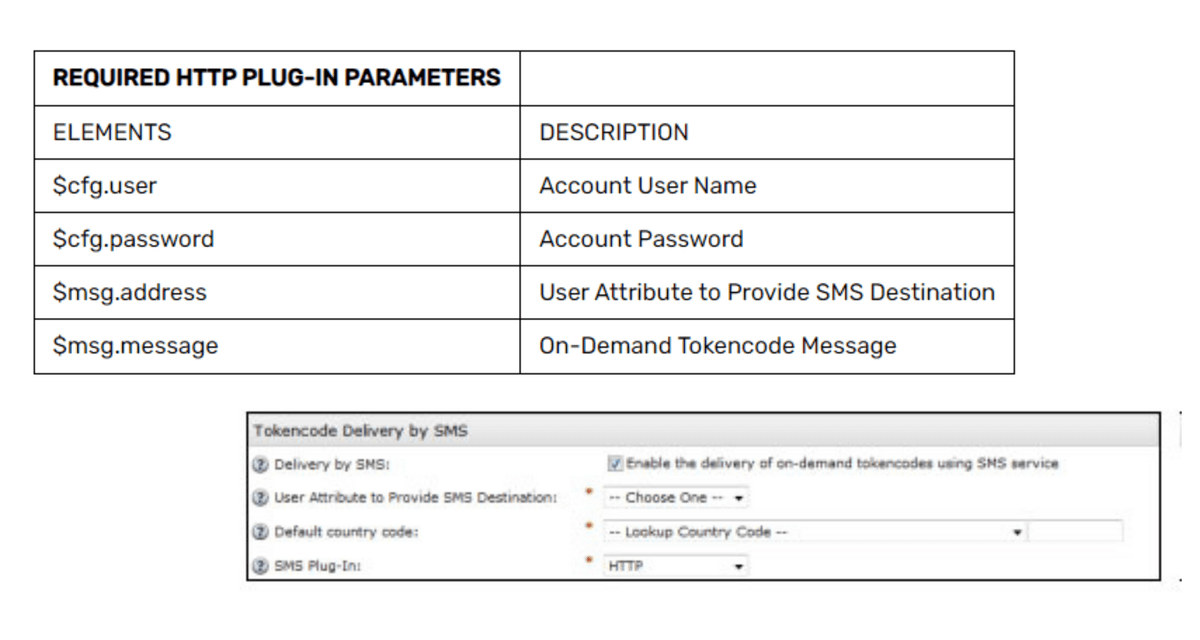

REQUIRED HTTP PLUG-IN PARAMETERS
ELEMENTS DESCRIPTION
$cfg.user Account User Name
$cfg.password Account Password
$msg.address User Attribute to Provide SMS Destination
$msg.message On-Demand Tokencode Message

SMS HTTP Plug-In is configured in the RSA Authentication Manager’s Security Console.

The configuration page has three sections:

  • Token code Delivery by SMS
  • SMS Provider Configuration
  • SMS HTTP Proxy Configuration (optional)

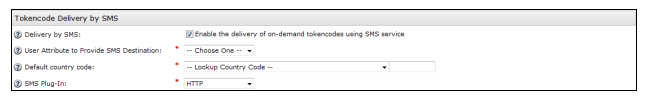

Tokencode Delivery by SMS

  • Mark the Delivery by SMS checkbox to enable the delivery of On-Demand Tokencodes using SMS service.

  • Select the User Attribute to Provide SMS Destination from the drop-down menu.

  • (Optional) Select the Default country code from the drop-down menu.

  • Select HTTP from the SMS Plug-In drop-down menu.

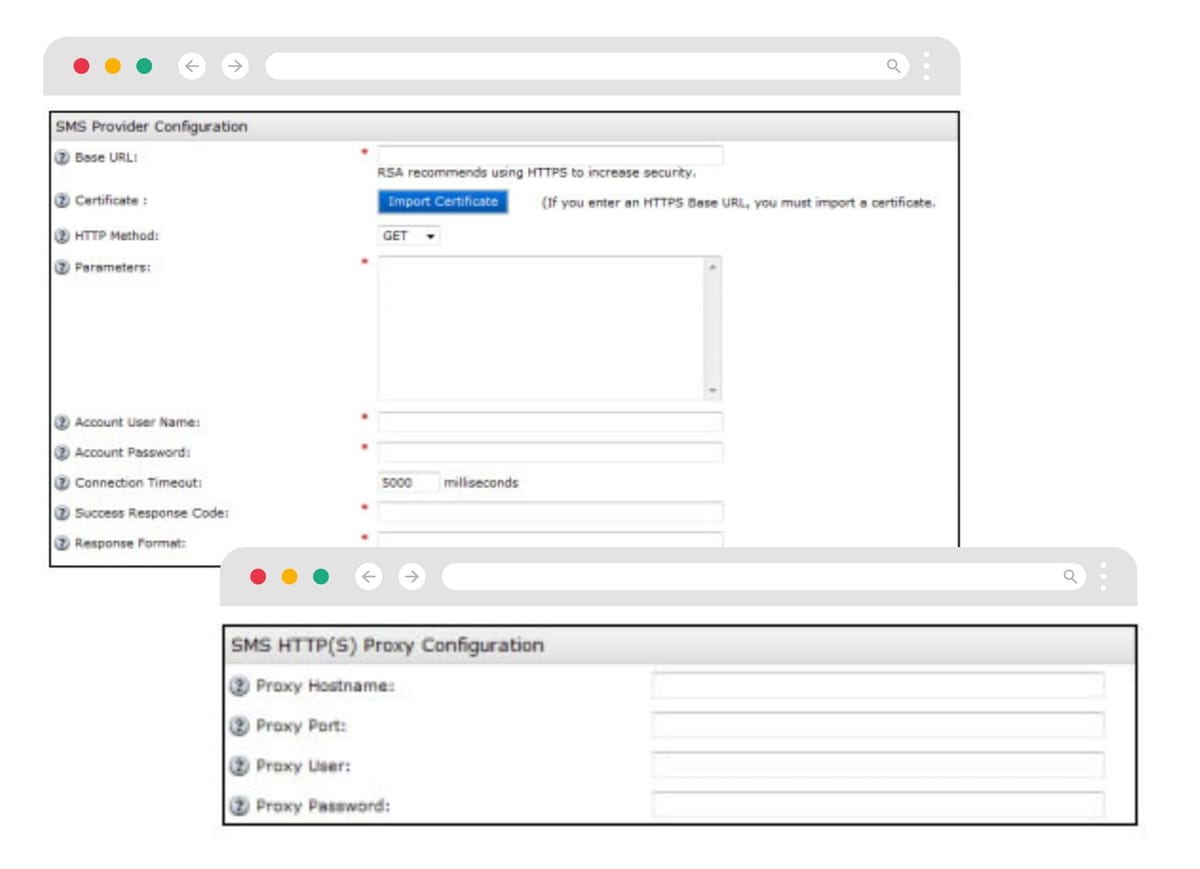

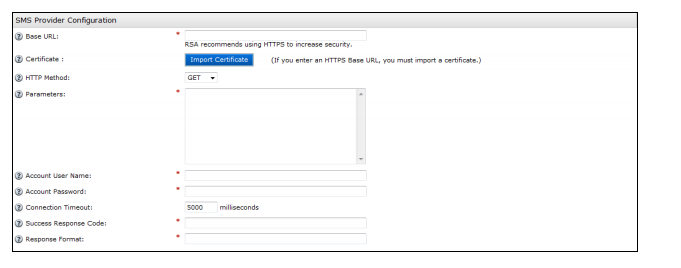

SMS Provider Configuration

  • Copy the following line into Base URL field. https://msgapi.wire2air.com/smsapi/submitsm.aspx

  • Click Import Certificate to browse to and install an SMS certificate if you are configuring your base for HTTPS

  • Import Certificate to browse to and install an SMS certificate if you are configuring your base for HTTPS

  • Copy the following string into the Parameters field and replace [myvasid] and [myshortcode] with the parameters
    provided by Wire2Air.

    vasid=[myvasid]&from=[myshortcode]&userid=$cfg.user&password=$cfg.password&to=$
    msg.address&text=$msg.message

    *To locate your Wire2Air Account VASID and From (senderid), go to Dashabord -> Manage Account -> API Information

  • Enter Account User Name for the SMS Provider.

  • Enter Account Password for the SMS Provider.

  • Copy the following line into the Success Response Code field.
    JOBID

  • Copy the following line into the Response Format field.
    (JOBID):

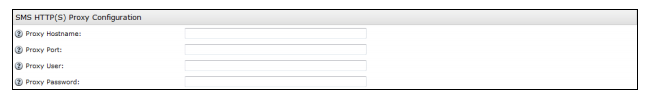

SMS HTTP Proxy Configuration (optional)

Enter the configuration settings for your HTTP Proxy server if you are using one.

Click Update to save the SMS Configuration

Certification Checklist for RSA HTTP Plug-In

PRODUCT NAME CERTIFICATION ENVIRONMENT VERSION INFORMATION OPERATING SYSTEM
RSA AUTHENTICATION MANAGER 8.1 VIRTUAL APPLIANCE
RSA LOCAL AUTHENTICATION CLIENT 7.2 WINDOWS 7 ENTERPRISE
WIRE2AIR 2.0 N/A
